thickener

Thickener

LZZG deep cone thickener promoted the structure of internal feed tube on the basis of traditional vertical flow sedimentation tank,optimized flocculation and deep solids compression provide paste consistency underflow and higher process rates, which greatly increase settling efficiency.

Introduction to Thickener

LZ thickener promoted the structure of internal feed tube on the basis of traditional vertical flow sedimentation tank, which greatly increase settling efficiency. The tank is circular, suspended solids settle down into bottom conical sludge tank by gravity, clear water flow away from overflow port around the upper tank. The overflow port is equipped with scum filter and baffle to ensure the water quality.

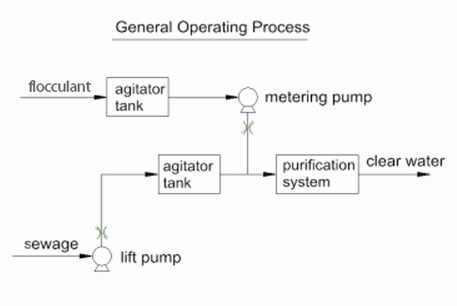

Working principle

yjkuy

Deep cone thickener is a machine that based on gravity and sedimentation which makes solid-liquid separate from each other.The concentration of pulp waste water could be enhanced from 60%~ 70% to 2% ~ 15% by the machine,
the clear water is overflow from the upper part of the thickener , so as to achieve the purpose of sewage purification and solid-liquid separation.

Technology Advantages

1. Automatic cleaning, automatic discharge slurry, solve manual operation;
2. Adopting the working principle of suspension filtration, media adsorption and settling, no purification membrane, no wearing parts;
3. Made of qualified carbon steel (or stainless steel, epoxy glass fiber reinforced plastic, etc.), with good strength and corrosion resistance;
4. Low flocculant using cost, big capacity, high efficiency, stable performance;
5. Small volume, small floor space, easy installation;
6. Service life is 10-15 years, low investment, remarkable economic benefit.
7. The purified water can totally reach to national standard of discharge and can be recycled.

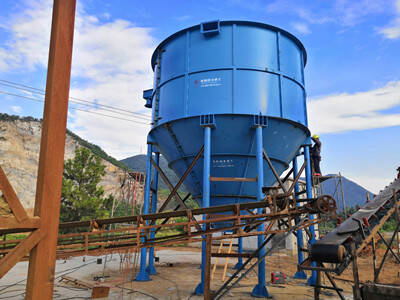

thickener1

thickener2

Specifications

Model Capacity (t/h) Tank Height (mm) Volume (m³) Weight (kg) Overall Size (mm)
S-3045 <50 4000 35 5000 3600X3600X8860
S-3060 50-100 6000 50 6000 3600X3600X10860
S-6030 100-150 3000 100 12000 6600X6600X9400
S-6045 150-200 4000 130 15000 6600X6600X10400
S-6060 200-300 5000 160 17000 6600X6600X11400
S-8045 300-500 4500 300 23000 8000X8000X10800
S-8060 500-600 6000 330 28000 8000X8000X12300
S-1045 600-800 4500 500 42000 10000X10000X13000
S-1060 700-900 6000 600 48000 10000X10000X14500
S-1245 800-1000 4500 750 51000 12000X12000X13000
S-1260 1000-1200 6000 900 58000 12000X12000X14500
