Ts Dewatering Screen

Dewatering screen is widely applied for dewatering, desliming, deintercalation, which can be used to sand and stone washing plant, coal preparation plant, sludge recycling, mineral processing plant, tailings dry discharge and more. So it is also called sand and stone dewatering screen, mine dewatering screen, coal slime dewatering screen, tailings dewatering screen, high frequency dewatering screen.

Introduction to Ts Dewatering Screen

Base on lower water content sand is well needed and sold in market, we do research and manufacture a series new type dewatering screen. TS dewatering screen is mainly used in mining, construction for coarse or fine sand dehydrate processing.With the advantages of simple structure and easy maintenance, it becomes a hot seller in our market.

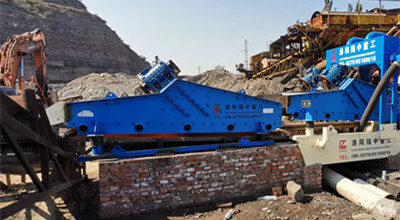

dewatering-screen2

dewatering-screen1

Working principle

Dewatering screen adopts dual-motor self-synchronization technology. The motors coordinate with universal eccentric and adjustable amplitude vibrator. When the two motors start to work, the vibrators move reversely at the same time. The centrifugal forces is generated by the eccentric blocks will superpose themselves and form a single direction vibration. The high frequency vibration drives the screen move back and forth in line repeatedly. So the sand can be dehydrated and filtered.

Features

1. Advanced structure, light weight, high dehydrating ratio with new type vibrating motors.
2. Simple structure, easy maintenance.
3. Cross beam and screen body connect with high strength bolts, no welding and easy to remove and maintenance.
4. Polyurethane screen (PU) high screening ratio, big capacity,long service life and no blocking.
5. Widely used, less replacement parts.

Specifications

Model Feeding Size (mm) Capacity (t/h) Screen Panel (mm) Screen Area (m²) Power (kw) Overall Size (mm)
TS0918 ≤10 10-20 900*1800 1.62 0.75*2 1890*1290*1080
TS0924 ≤10 10-20 900*2400 2.16 1.1*2 2480*1290*1220
TS1224 ≤10 20-40 1200*2400 2.88 2.2*2 2480*1590*1430
TS1230 ≤10 20-40 1200*3000 3.6 2.2*2 3080*1590*1500
TS1236 ≤10 20-40 1200*3600 4.32 3.0*2 3680*1590*1500
TS1530 ≤10 30-60 1500*3000 4.5 3.0*2 3080*1890*1440
TS1536 ≤10 30-60 1500*3600 5.4 3.0*2 3680*1890*1450
TS1836 ≤10 60-80 1800*3600 6.48 5.5*2 3720*2420*1930
TS1842 ≤10 60-80 1800*4200 7.56 5.5*2 4370*2420*2100
