No.6 Fine Sand Recycle Unit

No.6 fine sand recycle system is a combination of dewatering screen and hydrocyclone that is specifically developed integrates dewatering, screening and fine material recovery on the basis of the original recycling machine, and achieves the effect of multi-purpose machine.

Introduction to No.6 Fine Sand Recycle Unit

In the past few years, we improve core technical, select new processing methods and absorb different sites working situation, and successfully make No.6 sand recycling system as our LZZG brand. It is also called as “dewatering type sand recycling system”.

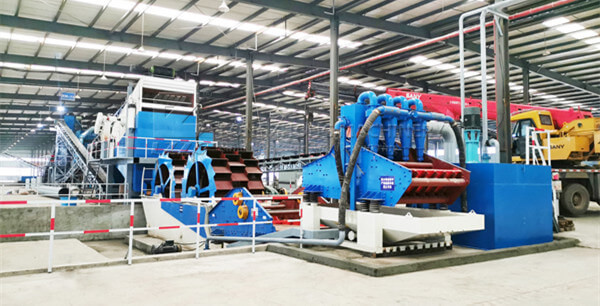

No.6 Fine Sand Recycle Unit

Working principle

About No.6 sand recycling system, we still choose polyurethane screen as its main screening part, and add recycling part on TS dewatering screen.
Sand after sand washer is fed onto polyurethane screen for dewatering, waste sand water through steel chute or rubber pipe in water tank and extracted by slurry pump into high pressure sediment separator, fine sand 0.16-3mm is sprayed onto polyurethane screen also for de-watering, the waste water is back to return box and flowing out.

Features

1. Dewatering type sand recycling system, sand grading is better.
2. Recycling 0.16-3mm fine sand.
3. Recycling rate reaches above 95%.
4. The water content of final sand is within 12%-15%.
5. Compact structure and install easily.

Specifications

Model Feeding Size (mm) Capacity (t/h) Screen Panel (mm) Hydrocyclone (mm) Power (kw) Overall Size (mm)
LZ1224D-55 ≤10 20-40 1200X2400 250X2 26.4 2760X4850X2780
LZ1530D-65 ≤10 30-60 1500X3000 300X2 36 3300X5250X3000
LZ1842D-75 ≤10 40-80 1800X4200 350X2 48 4600X5560X3520
LZ1842J-75 ≤10 60-100 1800X4200 350X2 52 4600X5560X3520
LZ2442J-120 ≤10 100-150 2400X4200 300X4 82 4600X6250X3600
LZ3048J-140 ≤10 120-200 3000X4800 350X4 104 5400X7000X4200
LZ3660J-180 ≤10 150-250 3600X6000 300X6 134 6600X7000X4800
