Spiral Sand Washing & Recycling Machine

Spiral sand washing and recycling machine is a multi-functional sand washing equipment that integrates sand washing, dewatering and recycling, which is designed and developed by our company for sand, stone powder, and other materials with high mud content in sand and gravel washing industry.

Introduction to Spiral Sand Washing & Recycling Machine

The spiral sand washer is a high efficient and multi-functional water washing equipment, which is composed of a spiral sand washing machine and a dewatering screen and hydrocyclones. Compared to the purchase price of equipment alone, the choice of spiral sand washing machine is undoubtedly more cost-effective.
The spiral sand washing machine consists of spiral sand washing device, overflow device, water reverse device, separation and recovery device, water storage tank, slurry pump, elrctro motor, reducer and so on.

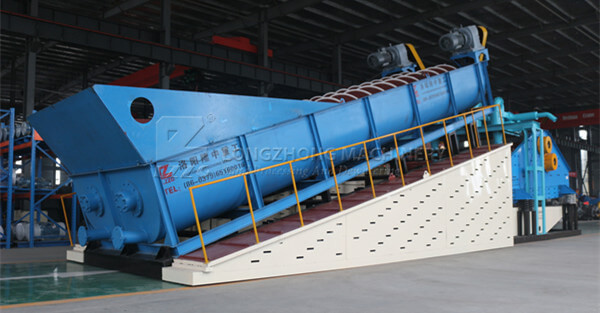

Spiral Sand Washing & Recycling Machine

Working principle

When the spiral sand washing machine is working, the crushing and grading materials are first passed through the conveyor belt to the double spiral sand washing device. After the grading and cleaning, the qualified material is dehydrated into the dewatering device, and the remaining waste water that after cleaning by the spiral sand washing device (containing a part of qualified material) is passed through the overflow device and get into the water reservoir device, then the waste water is pumped into the separation recovery device by slurry pump, material is concentrated under the action of centrifugal force, and the concentrated material get into the dehydrating device for dewatering.

Features

1. Compact structure, space saving.
2. The production range is large and can be customized.
3. High efficiency, more economical and practical.

Specifications

Model Feeding Size (mm) Capacity (t/h) Spiral Diameter (mm) Hydrocyclone (mm) Screen Panel (mm) Power (kw) Overall Size (mm)
LX09-65-1530 ≤10 30-60 920 300*2 1500*3000 47 11490*5560*3960
LX11-65-1842 ≤10 40-80 1120 300*2 1800*4200 59.5 12830*5860*4250
2LX09-75-1842J ≤10 60-100 920*2 350*2 1800*4200 82 12630*5850*3860
2LX11-120-2442J ≤10 100-150 1120*2 300*4 2400*4200 97 12630*6450*4150
2LX11-140-3048J ≤10 100-160 1120*2 350*4 3000*4800 141 13560*7860*4300
2LX15-180-3660J ≤10 160-250 1500*2 300*6 3600*6000 178 14760*7920*4900
