DS Series Multi Function Sand Washer

LZZG multi function modular sand washing plant equiped with hydrocyclones and could remove -63 micron material from the washed sand product. This effectively eliminating the loss of quality fines to waste water treatment phase, and the modular sand washing plants are widely used in mineral washing, recycling, rivers and lakes sand purification.

Introduction to DS Series Multi Function Sand Washer

With the shortage and non-renewable of mining resources, LZZG blockbuster launched DS series new sand washing equipment. It is widely used for crushed sand, river sand, lake sand or sea sand washing, screening, recycling and dewatering.

IMG_6705

IMG_6715

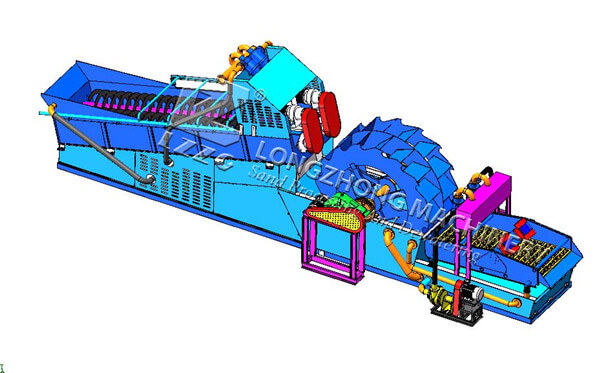

Working principle

22

Sand becomes the qualified products by the screening machinery, then flow into spiral stirrer through chute, the spiral sitter will clean, soak, break up sand ( especially direct at high mud content material), tailing waste water discharges into separating device to concentrate and grading. Tailing and coarse ore discharges into waterwheel to be cleaned and dehydrated at the same time, waste water discharges into secondary separating device to concentrate and grading, tailing and coarse ore discharges into dehydration and desliming device at the same time again. Then the finished product which is fully dehydrated by high frequency vibrating motor will be transported into material pile by belt conveyor and for sale.

Features

1. Combine spiral, wheel washer in one for twice cleaning.
2. Efficient, energy saving, environmental protection.
3. Can be customized for different models, multi-layer screen.
4. Installation is simple, low maintenance costs.
5. Finished sand moisture content of less than 15%, mud content of less than 2%.

Specifications

Model Feeding Size (mm) Capacity (t/h) Spiral Diameter (mm) Impeller Diameter (mm) Screen Panel (mm) Power (kw) Overall Size (mm)
DS-LX09-25-1530 ≤10 30-60 920 2500*1200 1500*3000 51 14550*5560*4150
DS-LX11-30-1842 ≤10 40-80 1120 3000*1600 1800*4200 95 16250*6200*3700
DS-2LX09-30-1842J ≤10 60-100 920*2 3000*1600 1800*4200 110.5 16250*6200*3700
DS-2LX11-36-2442J ≤10 100-150 1120*2 3600*2000 2400*4200 140.5 17450*6800*3700
DS-2LX15-36-3048J ≤10 120-200 1500*2 3600*2400 3000*4800 196 18000*7400*4600
DS-2LX15-42-3660J ≤10 160-250 1500*2 4200*3000 3600*6000 214 18580*8000*5200
