LZ Sand Washing & Recycling Machine

LZ sand washing & recycling machine is a kind of wheeled washing equipment by water, that improve the sand quality by separate and remove the dust and impurities mixed in sand. It is widely used in the sand washing plants for washing, classifying, dewatering and fines recycling natural sand or mechnism sand.

Introduction to LZ Sand Washing & Recycling Machine

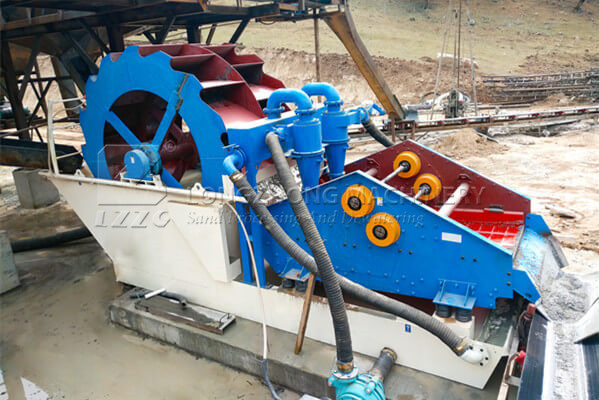

LZ sand washing & recycling machine is designed based on sand washer and sand recycling system and adopted foreign advanced technology. This machine main parts include: XSD wheel sand washer, high frequency dewatering screen, high pressure cyclone, cleaning tank, return box, high pressure wearable slurry pump, motors, etc. The machine has simple structure and multiple function, and is widely used for crushed sand, river sand, lake sand or sea sand washing, screening, recycling and dewatering.

sand-washing-mchine1

Working principle

*Washing: The bucket is driven by the motor through the reducer and rotates in circle. There are many sand storage web grooves and bucket screen for sand storage and primary dewatering. When the bucket moves, sand can be put out by sand storage web groove after being cleaned in the cleaning tank and primary dewatered on the bucket screen.

*Recycling: Flowing slurry water is extracted by slurry pump, fine sand is collected by the centrifugal force of the cyclone, then fed to the polyurathane screen from the apex spray. The 0.16-3mm fine sand and water are efficiently separated through the vibration screen.

*Dewatering: coarse sand (3-10mm) and fine sand (0.16-3mm) are fed onto polyurathane vibrating screen for dewatering.

LZ Sand Washing & Recycling Machine

Features

1.Higher sand quality, lower moisture content.
2.Recycled fine size 0.16-3mm sand, lower mud content.
3.Compact structure and easy installation.
4.High productivity and 95% of fine particles kn the material can be recycled.
5.Solve cleaning problem of seclimentation tank and improve economic performance at the same time.

Specifications

Model Feeding Size (mm) Capacity (t/h) Impeller Size (mm) Hydrocyclone (mm) Screen Panel (mm) Power (kw) Overall Size (mm)
DL40 ≤10 20-40 1800*800 250*2 1200*2400 29.4 5800*5000*1950
DL60 ≤10 30-60 2500*1200 300*2 1500*3000 40 5800*5560*2750
DL80 ≤10 40-80 3000*1600 300*2 1800*4200 46.5 7950*6200*3700
DL100 ≤10 60-120 3000*1600 350*2 1800*4200 57.5 7950*6200*3700
DL150 ≤10 100-150 3600*2000 350*2 2400*4200 66.5 8500*6800*3700
DL200 ≤10 120-200 3600*2400 350*4 3000*4800 115 7950*7400*4100
DL250 ≤10 160-250 4200*3000 300*6 3600*6000 149 8580*8020*4860
